Customize CoPilot UI

Customer_Features.xml (CoPilot 10)

It is possible to customize many of the menus and buttons within CoPilot utilizing an .xml file format. In order to configure the UI, please create a new file titled “customer_features.xml” and place this within a new directory titled “common”. These will need to be added to the locations stated below, which varies per platform.

Android Location

\sdcard\com.alk.copilot\uiconfig\common\customer_features.xml

Note: com.alk.copilot name may change for enterprise licensed deployments

Windows Laptop

\Program Files\ALK Technologies\CoPilot Laptop\uiconfig\common\customer_features.xml

Note: CoPilot Laptop may install at \Program Files (x86) on 64-bit machine.

Example Files

Below is an example text for the “customer_features.xml” or download an example from our Partner Portal. (Login required)

<elements name="features">
 <platform name="mycopilot"
 show_quit_copilot="1"
 show_minimize_copilot="1"
 hide_store="1"
 hide_mycopilot="1"
 hide_news_updates="1"
 feature_active_traffic="0" >
 </platform>
</elements>

Important: Please ensure your file includes straight quotes " and not “

Also, please ensure there are no duplicates keys as some keys control multiple buttons and will therefore be treated as an error by CoPilot.

Menus

In the menus below:

• Code that is prepended with feature (e.g. feature_active_traffic) will impact multiple dialogs/screens throughout the app.

• Code that is prepended with show will add a feature to the user interface (e.g. show_nav_custom_button="1").

• Code that is prepended with hide will hide a feature from the user interface (e.g. hide_navmenu_search="1").

Driving/Main Menu

1. show_quit_copilot="1" (Android & WinCE Only)
2. hide_navmenu_search="1"
3. hide_navmenu_2d_3d="1" (Hides 2D/3D toggle)
4. hide_navmenu_safety="1"
5. hide_navmenu_splitscreen="1" (Tablet devices only)
6. hide_navmenu_trip="1"
7. hide_navmenu_mute="1"
8. hide_navmenu_daynightmode="1"
9. hide_navmenu_cleartrip="1"
10. (Requires contractual changes to remove. Please contact )
11. hide_mycopilot="1"
12. show_menu_mapsure_truck="1" (NA regions only)

Search

1. hide_address="1"
2. hide_car_location="1" (Consumer apps only)
3. hide_recents="1"
4. hide_poi_search="1" (Hides entire row)
5. hide_yelp="1" (Hides entire row)
6. hide_contacts="1"
7. hide_coordinates="1"
8. hide_current_location="1"
9. hide_load_trip="1"

Coordinates

1. region*eu="1" (EU only)
2. show_coordinates_pplgrid="1" (Custom feature)
3. hide_coordinates_dd="1"
4. hide_coordinates_dms="1"
5. hide_coordinates_dm="1"

Guidance Screen

1. (Requires contractual changes to remove. Please contact )

2. show_nav_mapsure_truck="1" (NA regions only)
3. show_nav_clearstop="1" (Custom feature)

Mute on Guidance Screen

1. Starting with CoPilot 10.9, a mute button was added to the guidance screen. To hide it, set show_nav_mute="0"

Map Screen without guidance

1. (Requires contractual changes to remove. Please contact )

2. hide_nav_search_button="1"
3. hide_map_tooltipbutton="1" (Impacts tooltips on all map screens)

Location Information

1. hide_set_new_stop="1"
2. hide_link_avoid="1"
3. hide_link_waypoint="1"

POI Information

1. hide_call_poi="1"
2. hide_website_poi="1"

My CoPilot Menu

1. show_override_sync="1" (Custom Feature)
2. hide_my_maps="1"
3. hide_my_account="1"
4. hide_news_updates="1"
5. hide_help_feedback="1"
6. hide_menu_mapsure="1" (Default for consumer apps)

My Account

1. feature_routesync="1" (RouteSync only)
2. hide_privacy="1"
3. hide_cloud_backup="1"
4. hide_restore_lic="1" (Consumer apps only)
5. hide_email_updates="1"
6. hide_recommend_friend="1"
7. hide_upgrade="1" (Not available for iOS)
8. hide_change_device="1" (Not available for iOS)

Help & Feedback

1. hide_faqs="1" (Not available for WinCe or WinMobile)
2. hide_send_feedback="1"
3. hide_write_review="1"

Settings Menu

1. hide_settings_map_display="1"
2. hide_settings_vehicle_profiles="1"
3. hide_settings_alerts_warnings="1"
4. show_settings_mileage_logs="1" (Truck only)
5. feature_speed_coaching="1" (RouteSync only)
6. feature_active_traffic="1"
7. hide_feature_commute="1" (Consumer only)
8. hide_settings_regional="1"
9. hide_settings_styles="1"
10. hide_settings_sound="1"
11. hide_settings_data_battery="1"
12. hide_settings_gps="1"
13. hide_settings_reset="1"
14. (Requires contractual changes to remove. Please contact )

Data & Battery

1. hide_settings_cell_usage="1"
2. hide_settings_battery="1"

Battery Usage

1. show_battery_bg_navigation="1" (iOS/Android Only)
2. show_battery_low_power="1" (iOS/Android Only)

Regional & Voices

1. hide_settings_language_voice="1"

GPS Status

1. show_location_services= "1" (Windows phone only)
2. show_nmea= "1" (Android only)
3. hide_gps_setup="1"
4. hide_gps_satellites="1"
5. show_gps_reset= "1"

Vehicle Routing Profiles

1. feature_custom_vehicleprofiles= "1"
2. feature_default_vehicleprofiles= "1" //Set to 1 to hide default profiles
3. hide_create_routing_profile="1"
4. hide_view_edit_profile="1"

Routing Profile Settings

1. hide_truckrouting_resetprofile="1"
2. hide_save_profile="1"

About CoPilot

1. (Requires contractual changes to remove. Please contact )

Trip Screen

1. hide_trip_options="1"
2. hide_feature_vehicle_profiles="1"

Trip Options

1. hide_optimize_trip="1"
2. hide_load_trip="1"
3. hide_save_trip="1"
4. hide_clear_trip="1"
5. hide_trip_preview="1"

Launching an External Process

CoPilot supports an extra button that can be configured to launch an external process, such as returning to the app from which CoPilot was launched. The button will appear on the map as displayed in the image below. By default, this custom button is not visible.

1. show_nav_custom_button="1"

Available in CoPilot 10.14.0.549 and Later

The button can be also added using a series of user.cfg settings in our Android and Windows Laptop platforms.

Android

[User Settings]
"EnableCustomButton"=1
"AppLaunchBundleID"="com.alk.sdk"

• “AppLaunchBundleID” - The bundle ID for the .apk file to be launched.

Windows Laptop

Windows users must instead set the following configs, which contain the path to the process the button should launch, as well as the arguments.

[User Settings]
"EnableCustomButton"=1
"CustomButton_Cmd"="C:\WINDOWS\notepad.exe"
"CustomButton_Args"="www.alk.com"

• “EnableCustomButton” - Enables the button, Should be set to 1 to allow CoPilot to use the values defined in user.cfg
• “CustomButton_Cmd” - What application to launch (Default Value - Empty)
• “CustomButton_Args” - What arguments to pass to the application (Default Value - Empty)

Customer_Features.xml (CoPilot 11)

It is possible to customize many of the menus and buttons within CoPilot utilizing an .xml file format. To configure the UI, please create a new file titled “customer_features.xml” and place this within a new directory titled “common”. These will need to be added to the locations stated below, which varies per platform.

Android Location

\sdcard\com.alk.copilot\uiconfig\common\customer_features.xml

Note: com.alk.copilot name may change for enterprise licensed deployments

Example Files

Below is an example text for the “customer_features.xml” or download an example from our Partner Portal. (Login required)

<elements name="features">
 <platform name="mycopilot"
 show_quit_copilot="1"
 hide_my_account="1"
 hide_signin_button="1"
 feature_active_traffic="0" >
 </platform>
</elements>

Important: Please ensure your file includes straight quotes " and not “

Also, please ensure there are no duplicates keys as some keys control multiple buttons and will therefore be treated as an error by CoPilot.

Menus

In the menus below:

• Code that is prepended with feature (e.g. feature_active_traffic) will impact multiple dialogs/screens throughout the app.

• Code that is prepended with show will add a feature to the user interface (e.g. show_nav_custom_button="1").

• Code that is prepended with hide will hide a feature from the user interface (e.g. hide_navmenu_search="1").

Main Menu

1. show_quit_copilot="1"
2. hide_signin_button="1"
3. hide_my_account="1"
4. (Requires contractual changes to remove. Please contact )
5. hide_help_feedback="1"

Navigation/Home Screen Drawer

1. hide_navmenu_daynightmode="1"
2. hide_navmenu_2d_3d="1" (Hides 2D/3D toggle)
3. hide_navmenu_mute="1"
4. hide_navmenu_traffic="1"
5. hide_navmenu_3d_buildings="1"
6. (Requires contractual changes to remove. Please contact )

Navigation Screen Drawer

1. hide_navmenu_cleartrip="1"
2. hide_navmenu_directions="1"
3. hide_navmenu_safety="1"
4. hide_navmenu_splitscreen="1" (Tablet devices only)

Location Info Screen Drawer

1. hide_set_new_stop="1"
2. hide_link_waypoint="1"

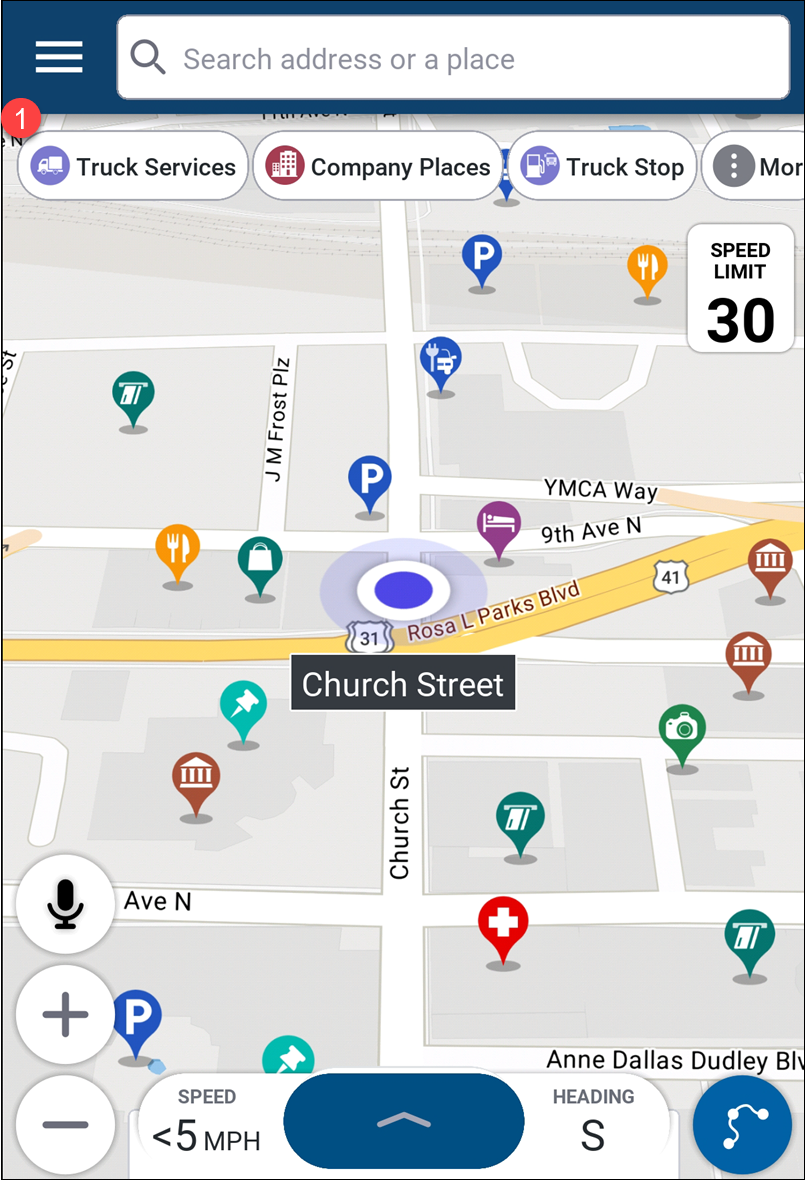

Search Screen

1. hide_search_quickpoi="1"
2. hide_favorites="1"
3. hide_recents="1"
4. hide_load_trip="1"

Settings Menu

1. hide_settings_map_display="1"
2. hide_settings_vehicle_profiles="1"
3. hide_settings_alerts_warnings="1"
4. show_settings_mileage_logs="1" (Truck only)
5. feature_active_traffic="1"
6. hide_settings_regional="1"
7. hide_settings_sound="1"
8. hide_settings_data_battery="1"
9. hide_settings_gps="1"
10. (Requires contractual changes to remove. Please contact )

Regional & Voices

1. hide_settings_language_voice="1"

Help & Feedback

1. hide_faqs="1"
2. hide_send_feedback="1"

Data & Battery

1. hide_settings_cell_usage="1"
2. hide_settings_battery="1"

Vehicle Routing Profiles

1. hide_create_routing_profile="1"
2. feature_default_vehicleprofiles= "1" //Set to 1 to hide default profiles
3. hide_view_edit_profile="1"

Routing Profile Settings

1. hide_truckrouting_resetprofile="1"
2. hide_save_profile="1"

Trip Preview Screen

1. hide_trip_options="1"
2. hide_feature_vehicle_profiles="1"

Trip Options

1. hide_optimize_trip="1"
2. hide_load_trip="1"
3. hide_save_trip="1"
4. hide_trip_preview="1"
5. hide_clear_trip="1"

Driver Preferences

Fleets licensed to use CoPilot 11’s new hours of service (HOS) feature will see a Driver Preferences button in the Settings screen. Driver Preferences allow drivers to select the type of rest stop they prefer when CoPilot suggests stops for HOS compliance. You can hide this feature with the setting below.

1. hide_driver_preference="1"
